the Raven Plus Walkout

This plan includes 5 hours of drafting time to customize the design to your liking.

The Raven Plus Walkout
Quick Stats
-almost 1880 sq ft of interior floor area
-2 full bathrooms
-sleeps up to 12
-large main-floor bedroom
-full walkout basement with bathroom and laundry

Sloped building sites often present both challenges as well as rare opportunities that you don't usually get with a perfectly level site. Not all designs easily adapt to a walkout-style basement.

The Raven Plus Walkout is designed to maximize space within its compact footprint, all while working with the natural contours of the land.

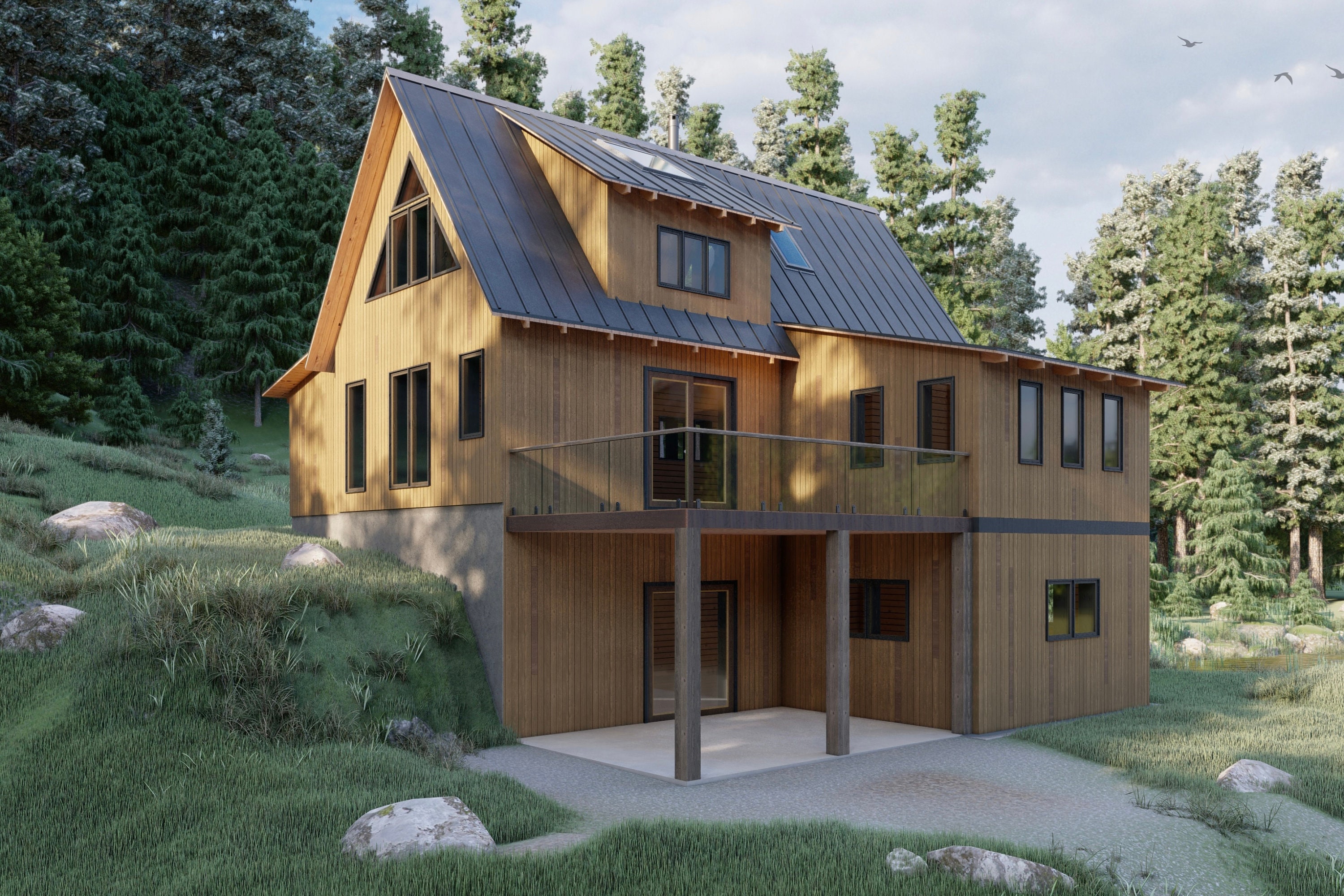

With the entire down-slope side in full daylight, you get 3 floors worth of bright living space without the downsides of a fully-underground basement.

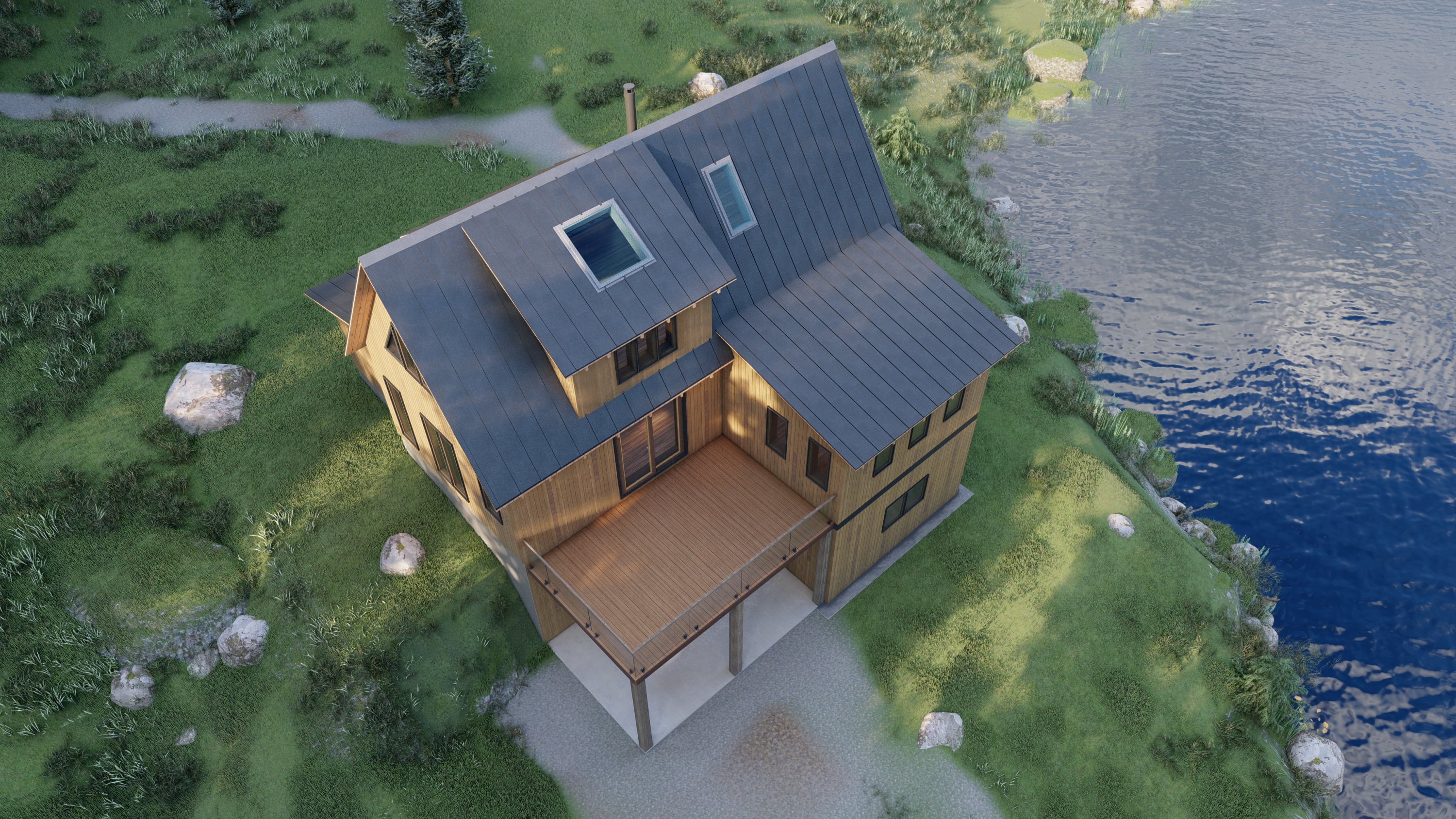

With almost 1880 sq.ft. inside and a big open deck outside, this one has room for the whole crew.

The full set is comprised of 27 individual drawings spread across 8 ‘Arch-D’ pages.

Drawings included:

-exterior wall, roof, interior partition and floor construction assembly sections and details

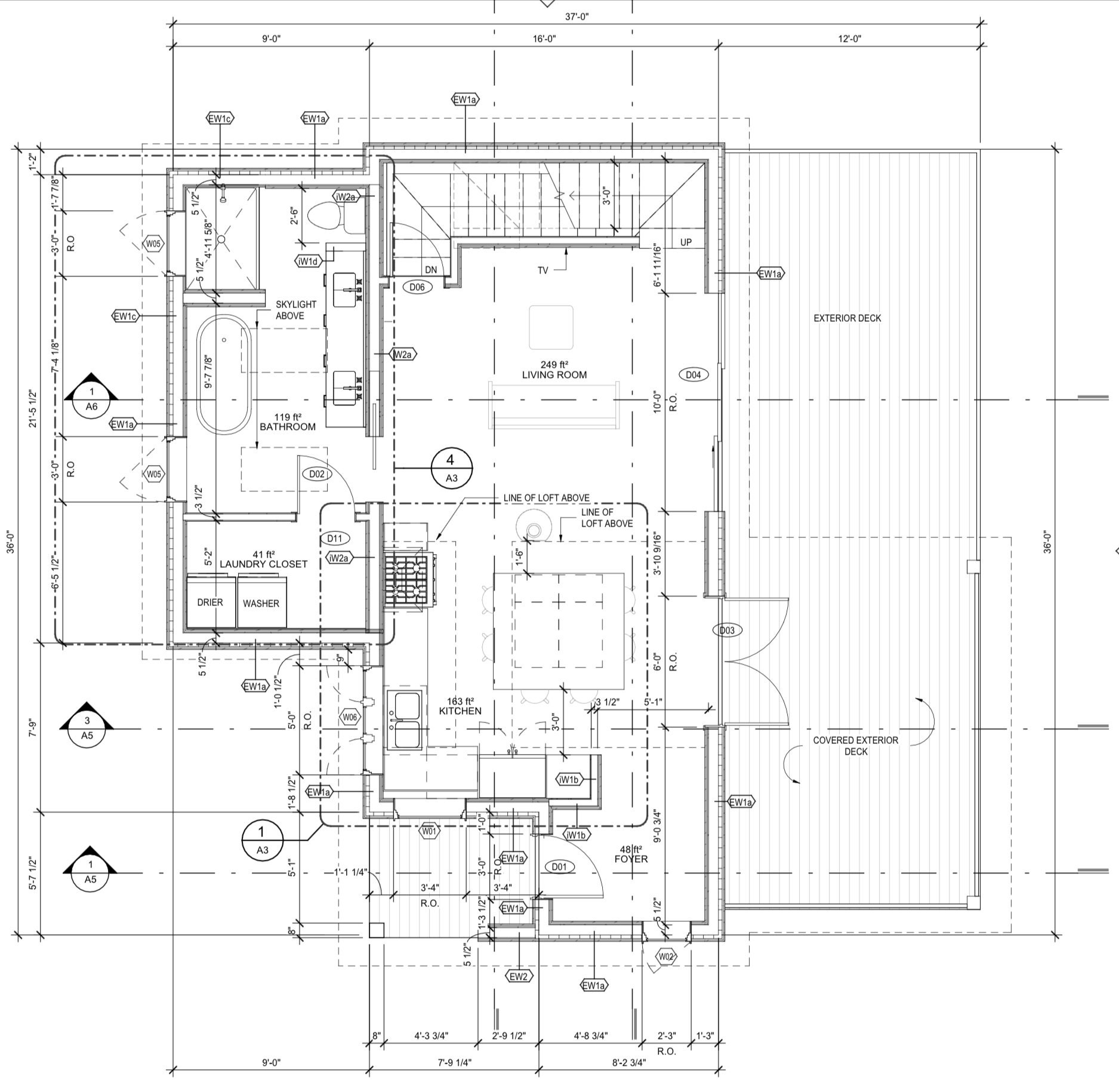

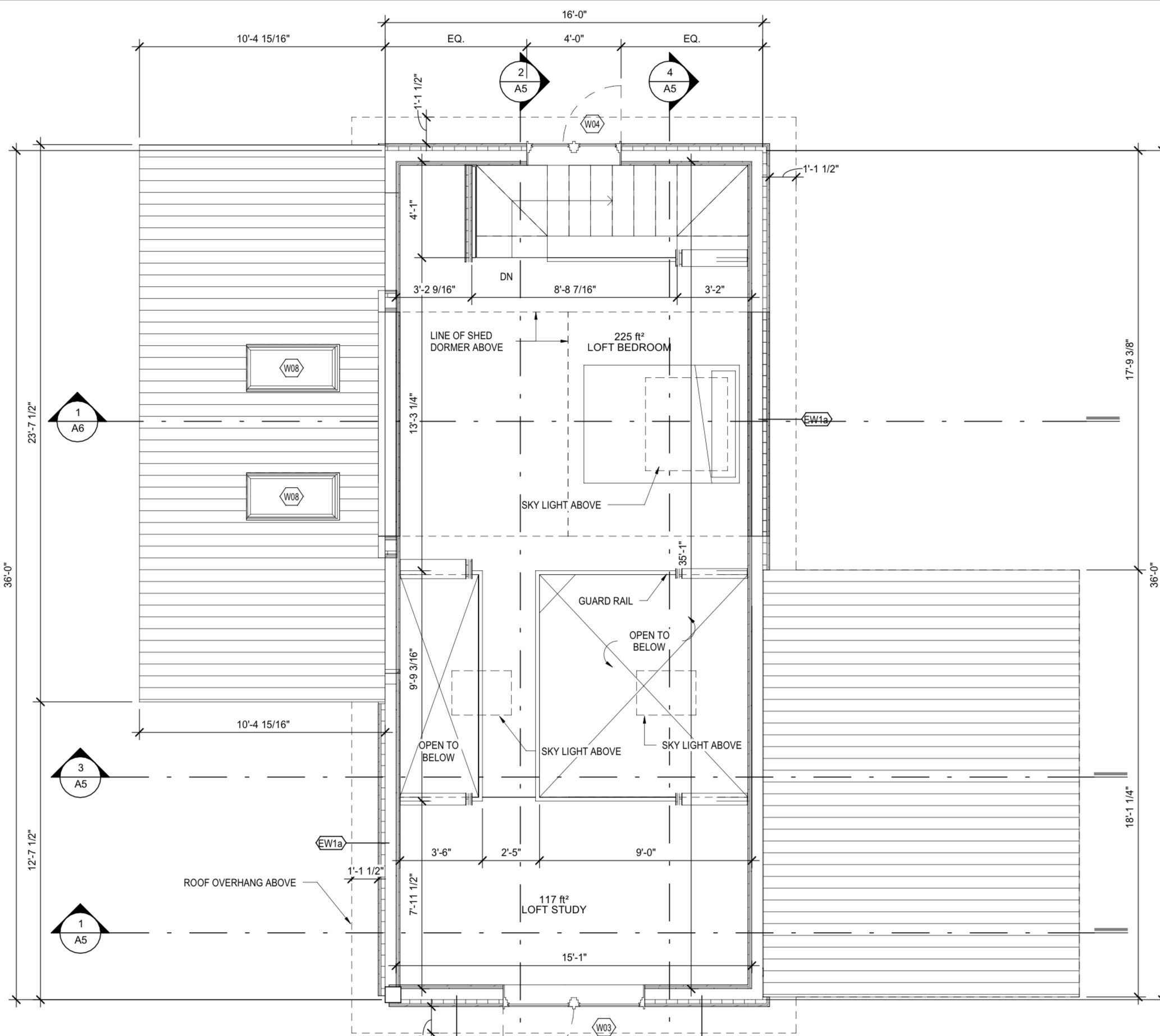

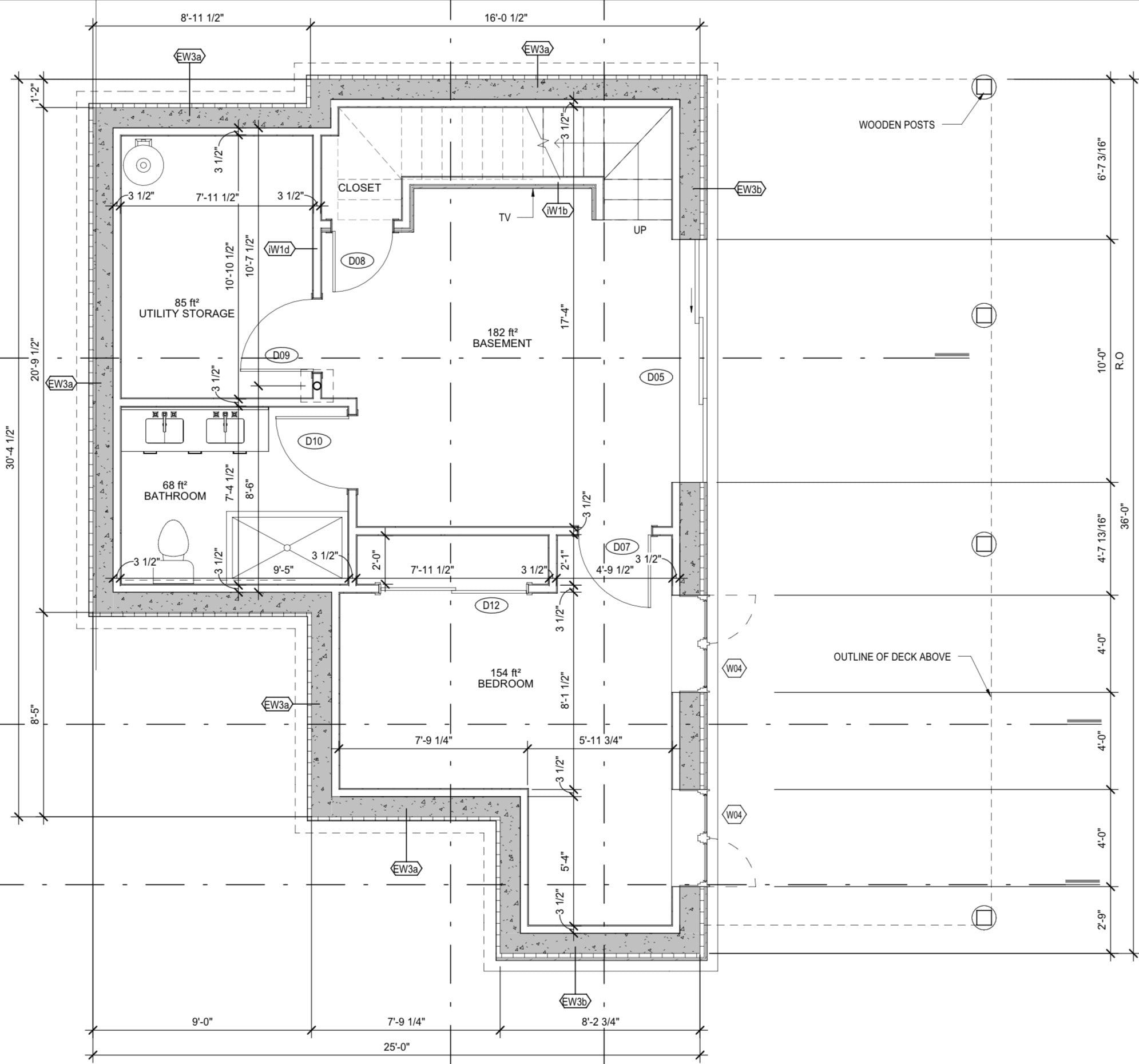

-floor plans for main, loft and basement levels
-bathroom and kitchen interior elevations
-detailed bathroom and kitchen floor plans
-all 4 exterior elevations
-2 full longitudinal sections
-3 full lateral sections
-rafter tail detail options
-high gable window framing details
-framing plans for roof, main floor and loft level
-window schedule
-door schedule

E&OE
